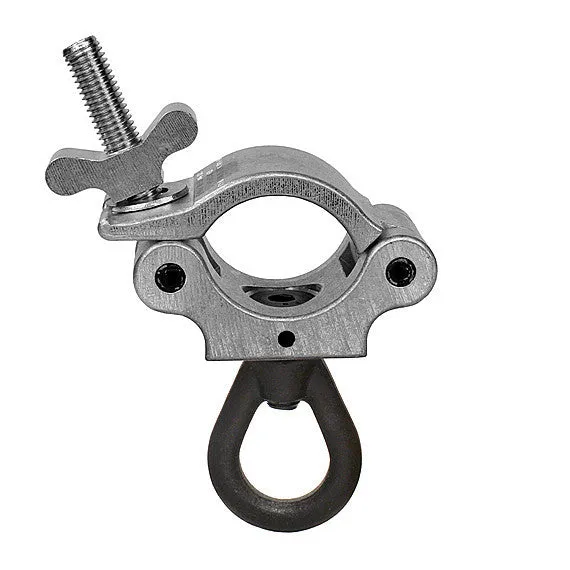

MLMSE Eye Clamp Heavy Duty Pro w/Eye Bolt
ALL BULBS will beat "ALL" competitors pricing! ….... Call 516.766.2266
MLMSE Mega-Coupler w/Eye Nut Aluminum Finish The Mega-Coupler w/Eye Nut
Quantity Per Case: 12
The Mega-Coupler with Eye Nut has a Forged Steel Eye Nut for making rigging connections from a pipe or truss. The Forged Eye Nut is secured to the Mega-Coupler with a 1/2" flathead socket screw with permanent loctite. The Eye Nut rigging connection is 2-3/4" below the pipe and is able to swivel for proper orientation before loading. The Mega-Coupler will fasten from 1-1/4" pipe (1.660" OD) to 2.050" OD truss tube. The Mega-Coupler has our wide wing nut for fastening the clamp to the pipe or tube. Safe Vertical Working Load 1100 Pounds, (500 KG).
- Minimum Size 1.25" pipe, 1.66" OD pipe
- Maximum Size 1.5" pipe, 1.90" OD pipe, 2" OD truss tube
- Working Load Limit 1100 Pounds
- Hardware Forged steel eye nut. 1/2" flathead socket screw with permanent loctite.
- Dimensions 2.5" Tall2" Wide.4" ThickI.D. of 1.2" WideI.D. of 1.5" Tall
- - The I.D. is pear shaped
- Weight 1.3 Pounds
- Case Quantities 24
